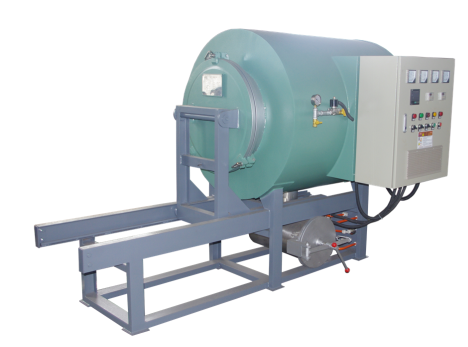

Cleaning Furnace
Vacuum cleaning furnace includes vacuum cleaning furnace body, furnace cover and waste collection system, vacuum system, sealing system, electric heating system controlled by computer, water cooling system and cleaning material handling system.
The principle of furnace is use medium frequency induction heating method to heat graphite heater which set in induction coil under vacuum condition or atmosphere protection, graphite heater create high temperature and radiate it to work pieces, make them achieve demand temperature. It mainly applied for new materials silicon carbide reaction sintering, sintering temperature near 2500 degree Celsius. Its main constituent parts are debinding system, dedusting system, rapid cooling system (special air duct), heating chamber, vacuum system, heating system and so on. Furnace type has vertical, horizontal, bottom loading three types.
|
Parameter |
Effective temp zone |
Max temp |
Ultimate pressure |
Pressure rising rate |
Medium frequency power |
Medium frequency |
Temp control accuracy |
|
|
|
|
|
|
|
|
|
|
Model |
|
|
|
|
|
|
|
|
Unit symbol |
mm(Φ×H) |
℃ |
Pa |
Pa/h |
KW |
HZ |
℃ |
|
RVS-160 |
500×800 |
2000 |
7×10-1 |
1.5 |
160 |
2000 |
≤±10 |
|
RVS-250 |
650×800 |
2000 |
7×10-1 |
1.5 |
250 |
2000 |
≤±10 |
|
RVS-350 |
900×1200 |
2000 |
7×10-1 |
2 |
350 |
1500 |
≤±10 |
|
RVS-500 |
1200×1500 |
2000 |
7×10-1 |
2 |
500 |
1500 |
≤±10 |
|
RVS-750 |
1500×2000 |
2000 |
7×10-1 |
2 |
750 |
1000 |
≤±10 |
We usually send the drawing for last confirmation before production.
- Main Features
- Cleaning is totally automatic
- Precise temperature control
- Suitable for different thermo plastic polymers
- Short cleaning cycles and low energy consumption
- Safety and no pollution
- Application
-
Vacuum cleaning furnace is used to clean common spinneret, special-shaped spinneret, fine denier spinneret, component shell in chemical fiber industry such as polyester, polypropylene, non-woven fabric, etc. It can also be used to clean filter core.
-
